Nessus Scans

Perform Nessus scans on OWASP BWA and DVWA, identify vulnerabilities and propose countermeasures.

Name: Anurodh Acharya

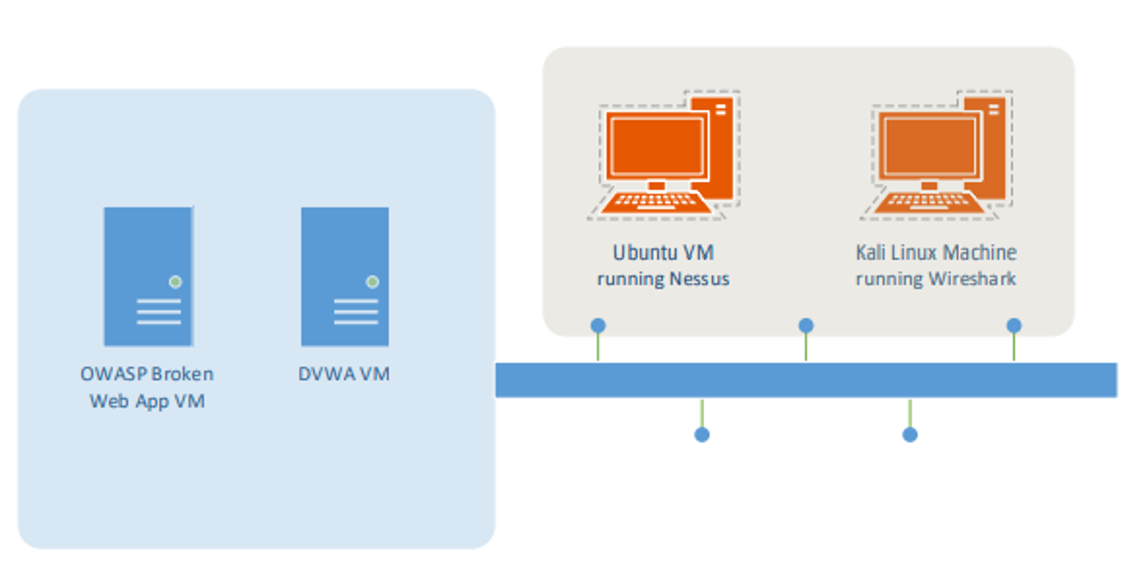

1. Perform a Basic Network Scan and Web Application Tests scan on both of the vulnerable machines. Make sure to record all scans using Wireshark.

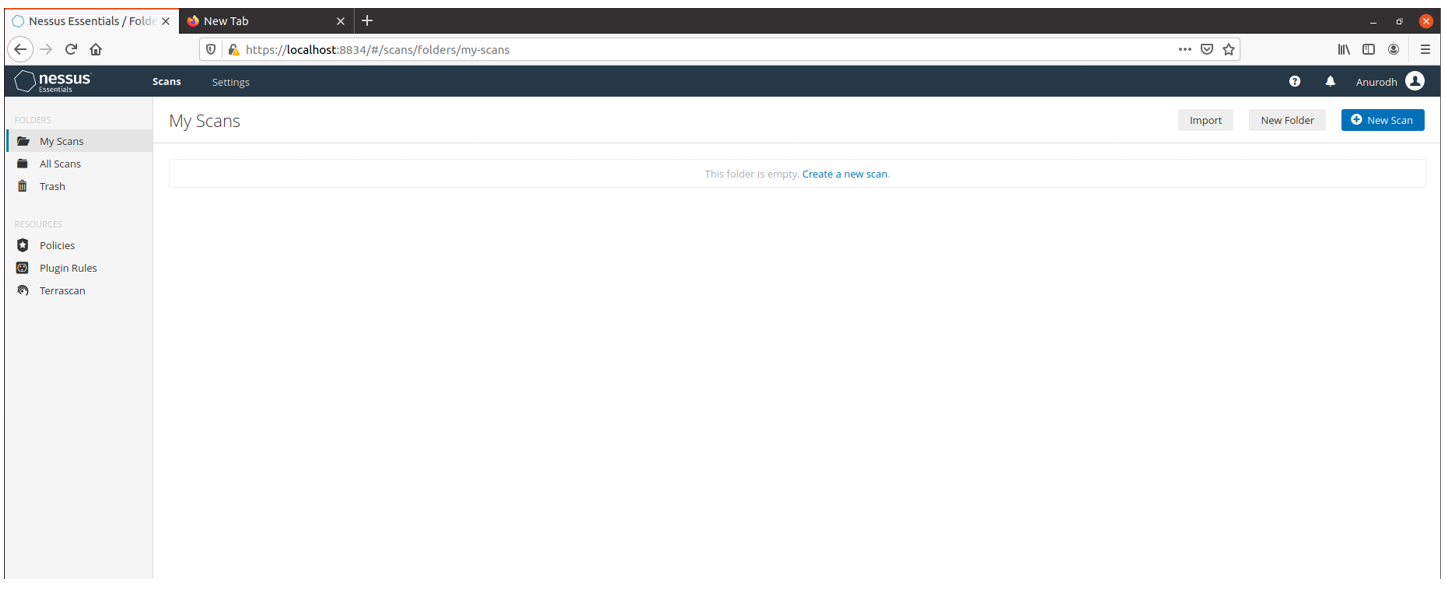

Nessus Home Dashboard

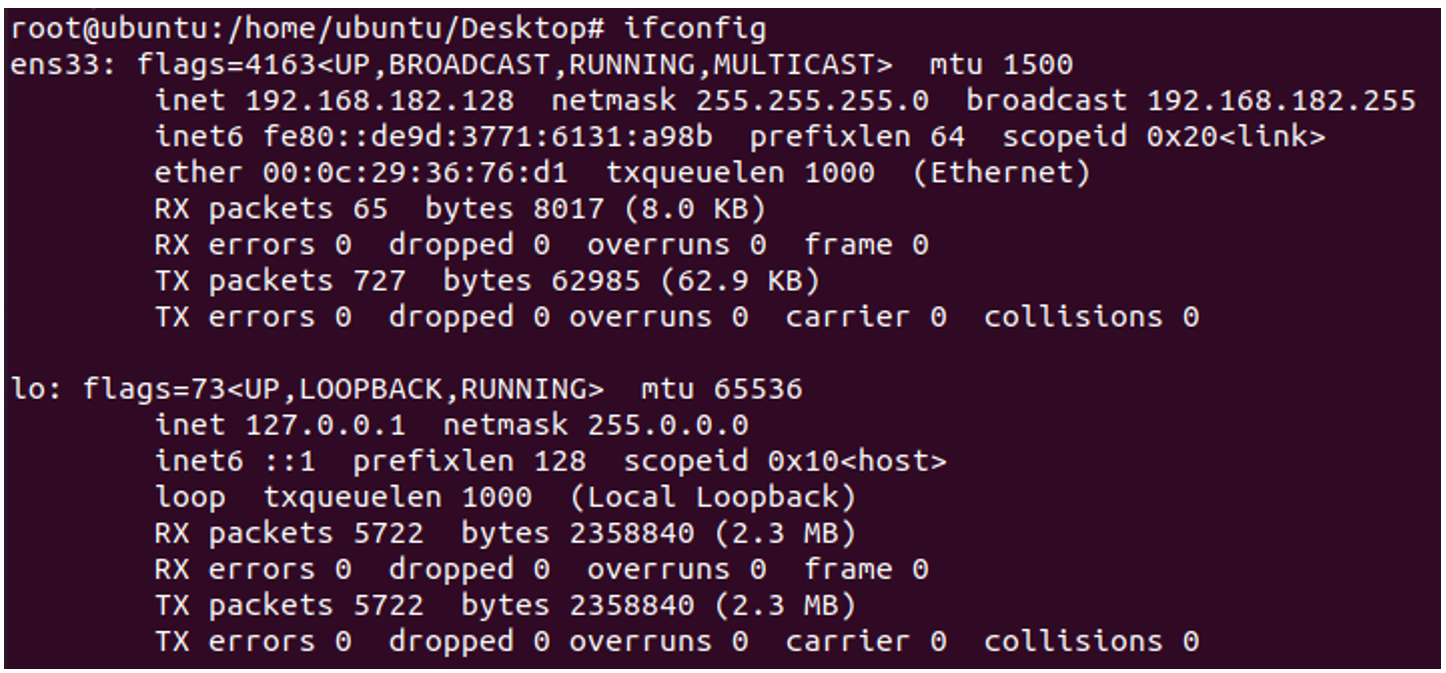

Network Configuration: Ubuntu

Ubuntu Network Scan Config

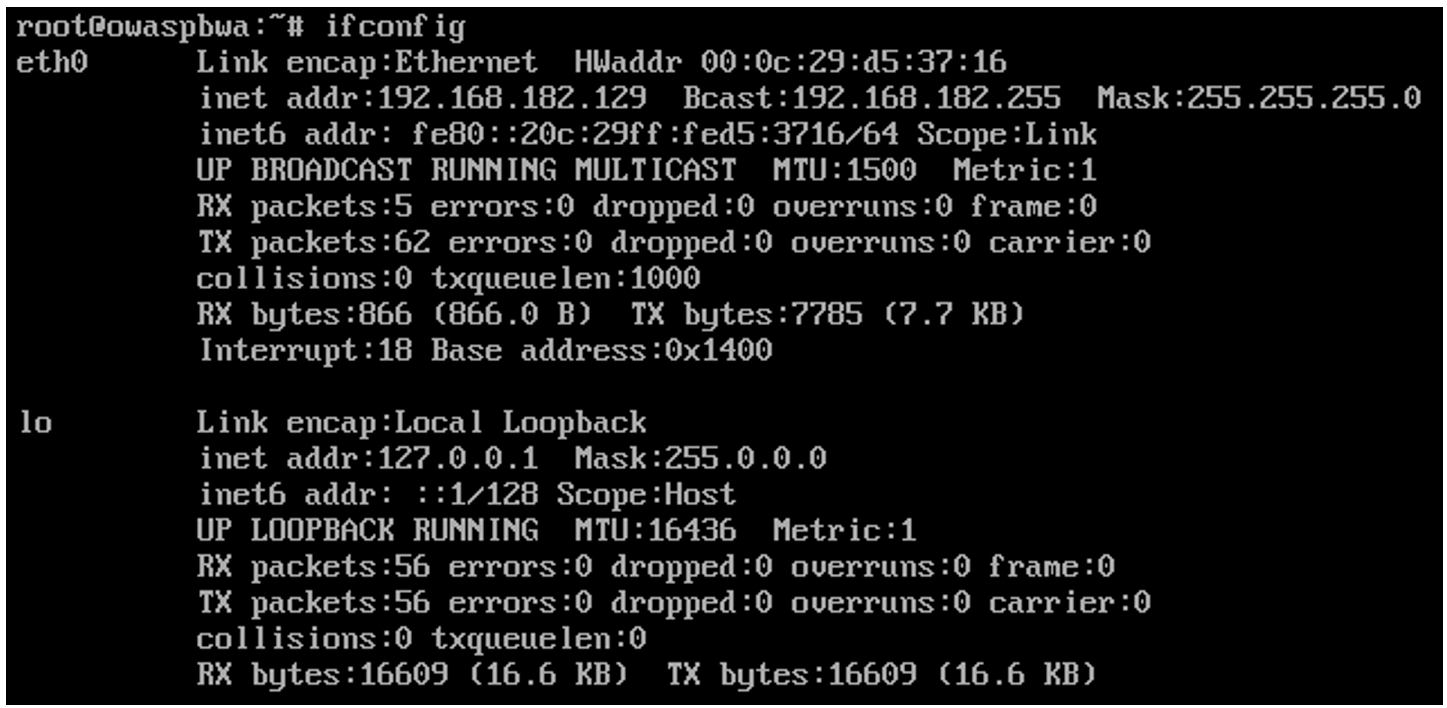

Network Configuration: OWASP BWA

OWASP BWA Network Scan Config

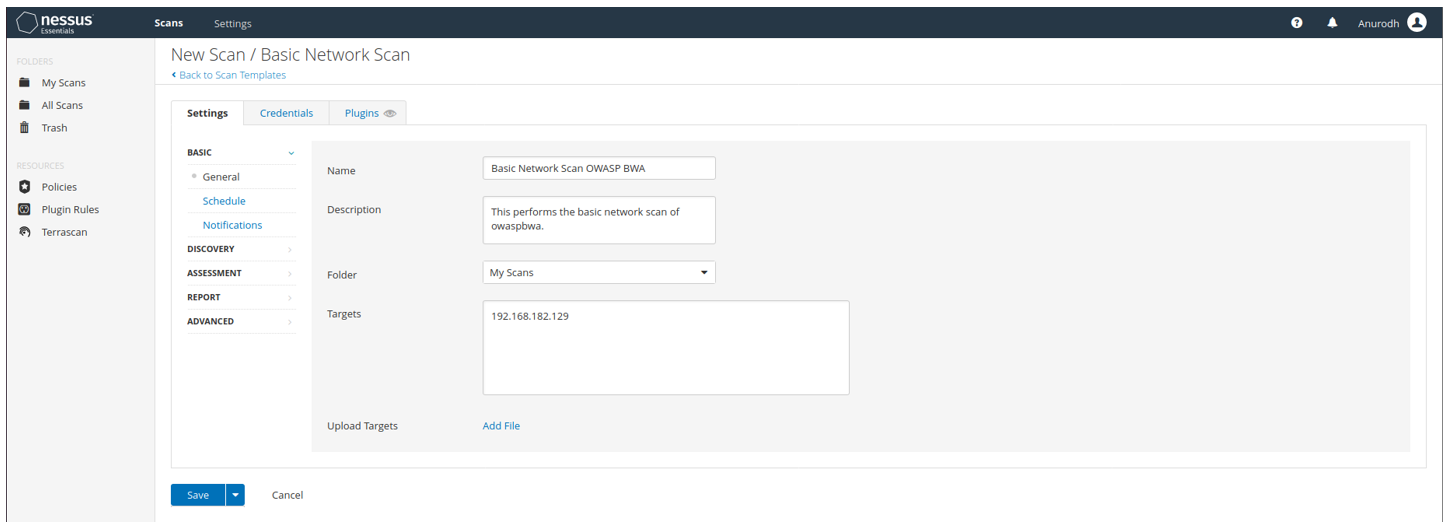

Setting up Basic Network Scan on OWASP BWA

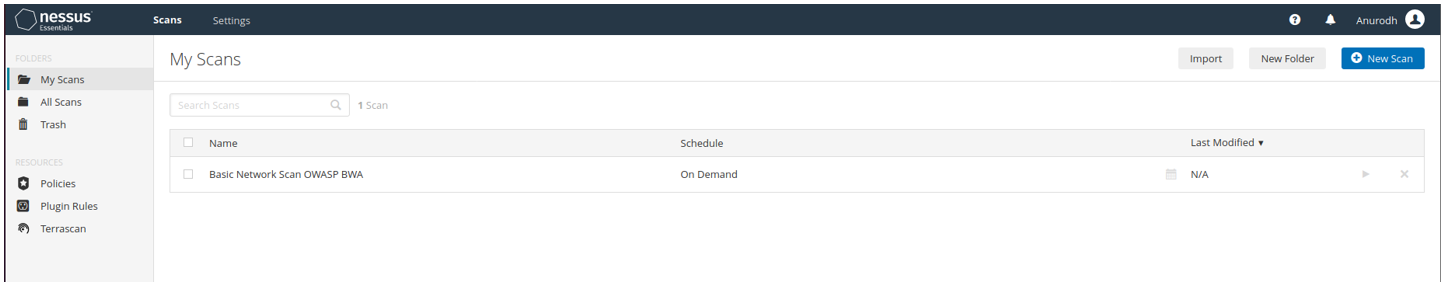

Basic Network Scan on OWASP BWA

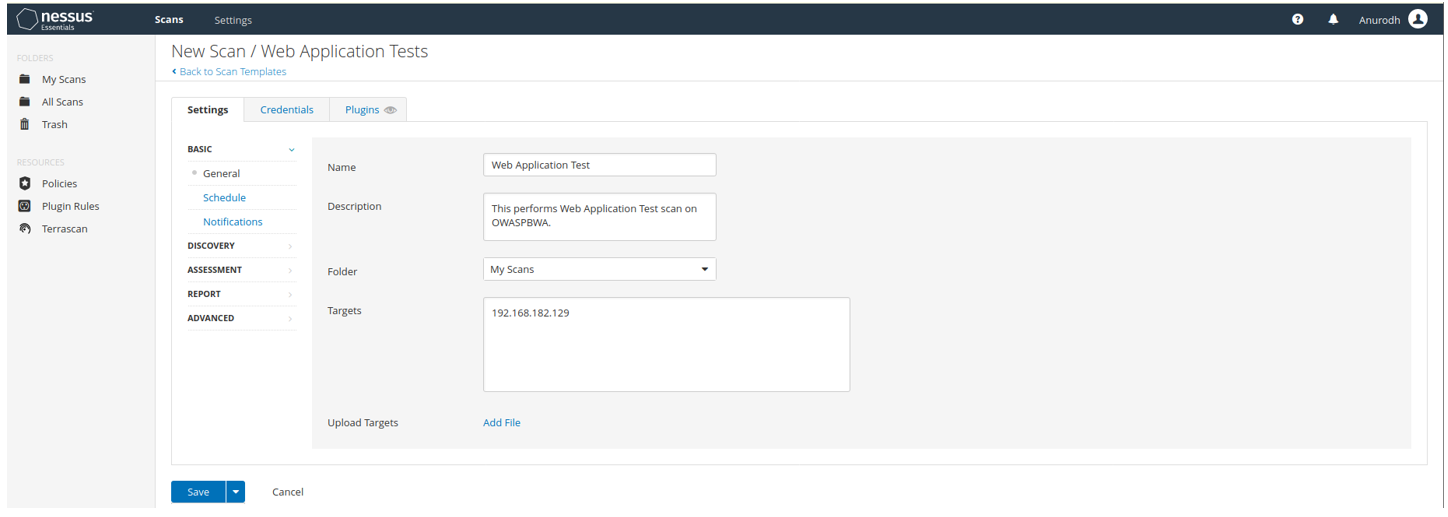

Setting up the scan for Web Application Test on OWASP BWA

Web App Test Scan on OWASP BWA

Now it’s time to work with DVWA

DVWA Scan Welcome Screen

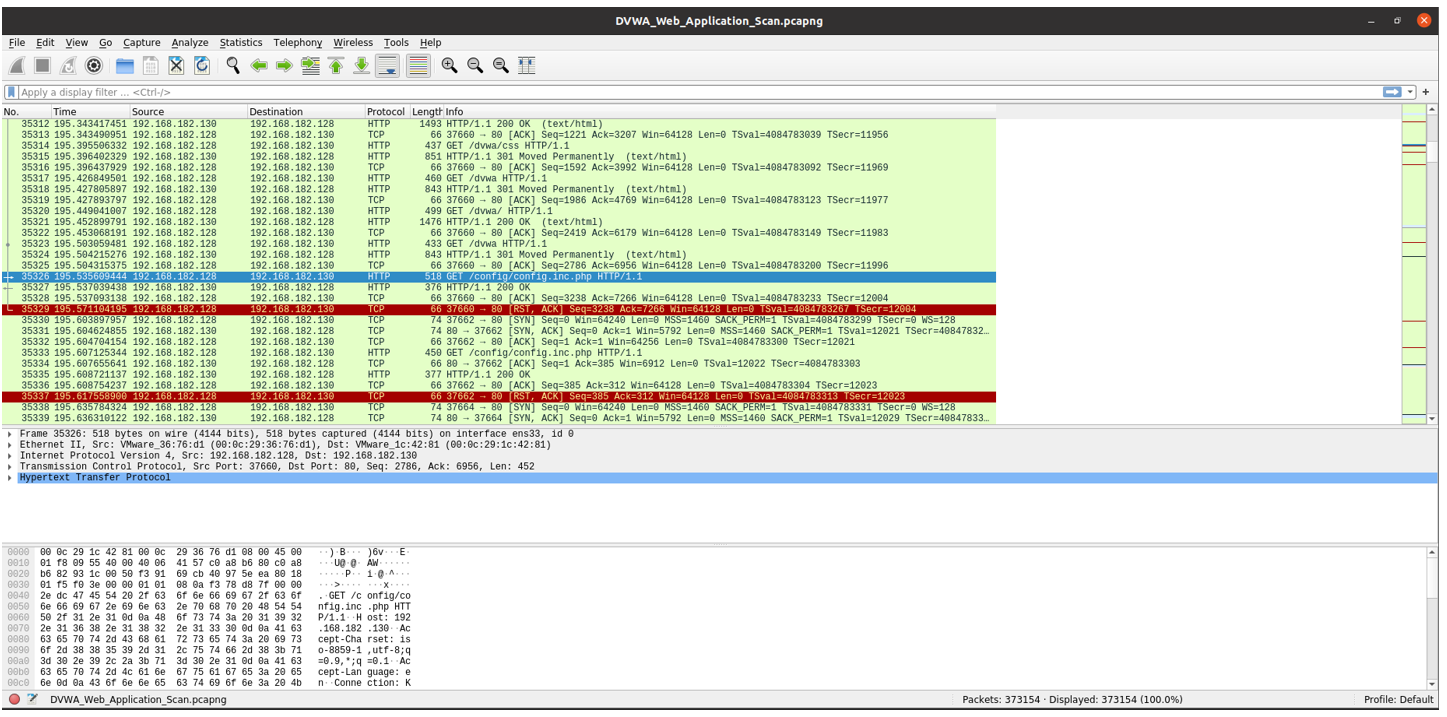

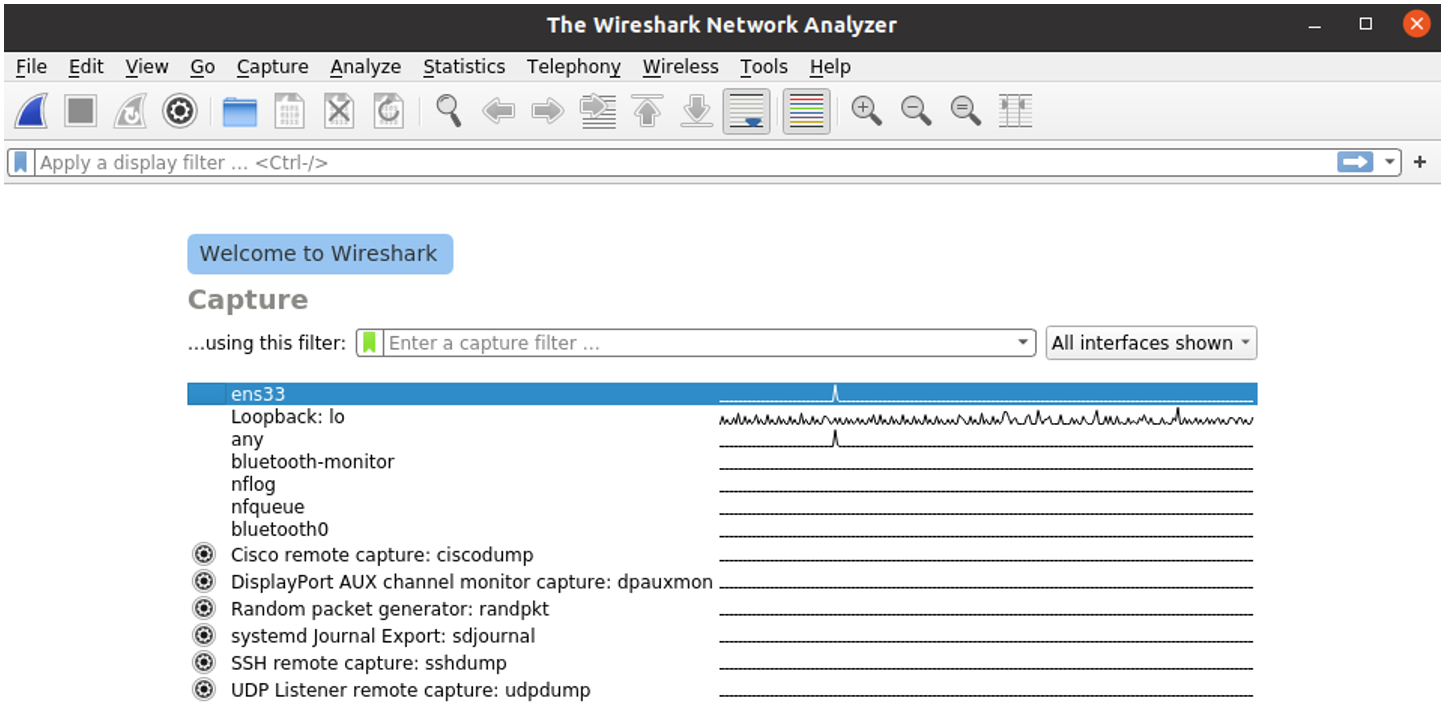

Here, I will start capturing the packets.

Ubuntu Network Scan Config on DVWA

Setting up the scan for Web Application Test on OWASP BWA.

DVWA Network Scan Config

Now it’s time to work with DVWA.

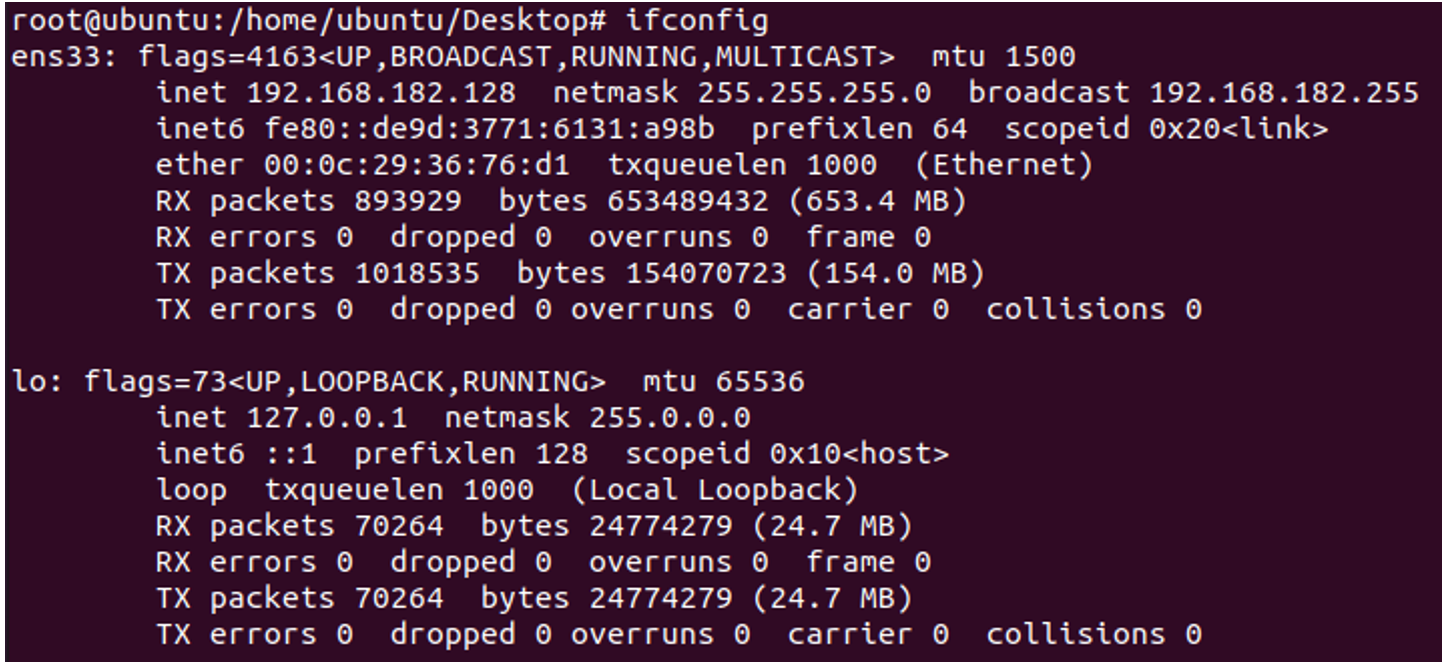

Network Configuration: Ubuntu

Basic Network Scan on DVWA

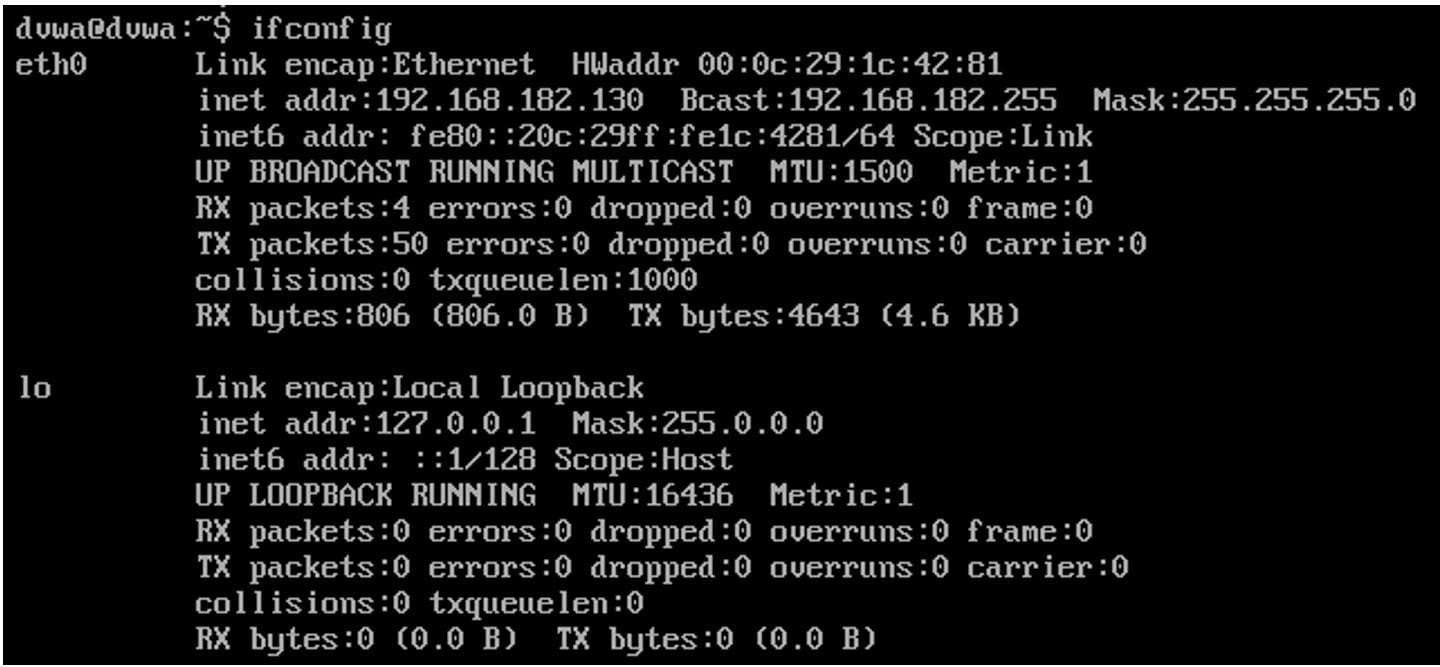

Network Configuration: DVWA

Web App Test Scan on DVWA

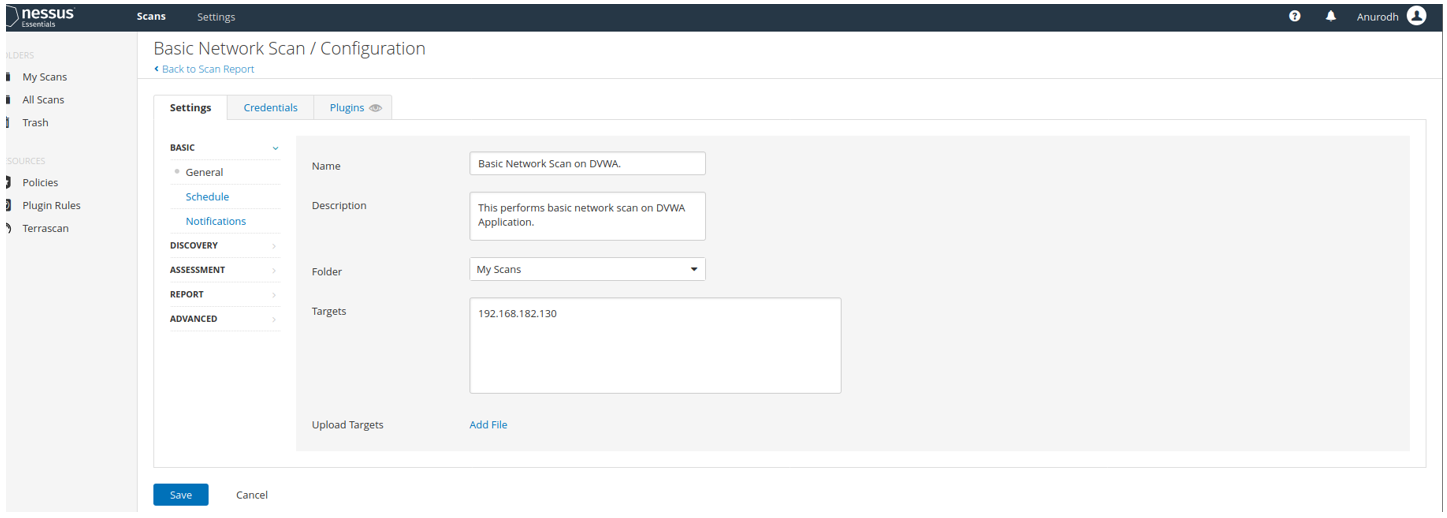

Below is the scan configuration for Basic Network Scan on DVWA.

SSLv2/v3 Detection on OWASP BWA

Below is the scan configuration for Web Application Test scan on DVWA.

Badlock Vulnerability on OWASP BWA

1. For each of the four scans, select a moderate or high risk vulnerability. Provide a description and suggest possible counter measure.

Problem

The service is accepting encrypted connections using SSL version 2.0 or SSL version 3.0.
These SSL versions have significant security cryptographic flaws.
An attacker can perform cryptographic attacks and further do MITM attacks.

Solution

It is suggested to disable both SSL version 2.0 and version 3.0.
Make use of TLS version 1.2 and above.

Samba Badlock Vulnerability

Problem

This is the vulnerability which exists in Security Account Manager (SAM) and Local Security Authority (LSAD).
The attacker will be capable of reading and writing directly into the SAM database which will further allow the adversary to display all the passwords and other sensitive information that is present in the database.

Solution

It is suggested to upgrade the samba version to 4.2.11, 4.3.8, 4.4.4 or later.

Web Application Test: SQLi Vulnerability

Problem

The software running in remote host is vulnerable to SQL injection within the login forms.
The adversary will be able to create a special crafted parameters to bypass the authentication mechanism.

Solution

It is recommended to upgrade this to latest version of software which has appropriate input validations to stop this attack.

Web Application Test: XSS

Problem

The JQuery version which has been used in the server is affected by multiple XSS vulnerabilities.

Solution

It is recommended to upgrade the JQuery version to 3.5.0 or to a later one.

DVWA

Basic Network Scan: SSL Certificate Signed Using Weak Hashing Algorithm

Problem

A weak hashing algorithm has been used by the service which are potentially vulnerable to collision attacks.

Solution

Have the SSL reissued from the CA (Certificate Authority).

CVSS Score

CVSS v3.0 Base Score: 7.5 (CVSS:3.0/AV:N/AC:L/PR:N/UI:N/S:U/C:N/I:H/A:N)
CVSS v3.0 Temporal Score: 6.7 (CVSS:3.0/E:P/RL:O/RC:C)
CVSS v2.0 Base Score: 5.0 (CVSS2#AV:N/AC:L/Au:N/C:N/I:P/A:N)
CVSS v2.0 Temporal Score: 3.9 (CVSS2#E:POC/RL:OF/RC:C)

OpenSSL < 0.9.8w ASN.1 asn1_d2i_read_bio Memory Corruption

Problem

The web server is currently running a web server using OpenSSL version before 0.9.8w which is vulnerable to memory corruption vulnerability.

Solution

It is suggested to upgrade the OpenSSL to 0.9.8w or later versions.

CVSS Score

CVSS v2.0 Base Score: 7.5 (CVSS2#AV:N/AC:L/Au:N/C:P/I:P/A:P)
CVSS v2.0 Temporal Score: 5.9 (CVSS2#E:POC/RL:OF/RC:C)

Web Application Scan: phpMyAdmin Installation Not Password Protected

Problem

The phpMyAdmin which has been installed on the web server provides unauthenticated access and does not require any identification.
This will allow the adversaries to directly execute the SQL queries and process malicious codes remotely.

Solution

Require an authentication mechanism to access phpMyAdmin.

Risk Factor

High

CVSS v2.0 Base Score

7.5 (CVSS2#AV:N/AC:L/Au:N/C:P/I:P/A:P)

Email Header Injection

Problem

The current version of PHP which is running on the web servers is vulnerable to email header injection.
This is due to not handling CR-LF sequences in the header fields.

Solution

It is recommended to upgrade the PHP version to 7.3.28 or later one to mitigate this vulnerability.

Risk Factor

Medium

CVSS v3.0 Base Score

5.3 (CVSS:3.0/AV:N/AC:L/PR:N/UI:N/S:U/C:N/I:L/A:N)

CVSS v2.0 Base Score

5.0 (CVSS2#AV:N/AC:L/Au:N/C:N/I:P/A:N)

3. For the two Basic Network Scans, select a vulnerability that was detected on one of the machines but doesn’t show on the report of the other machine. Identify the Wireshark packets related to the detection/probing of this vulnerability on both scans.

Basic Network Scan

OWASP Broken Web Application: SMB Signing not required

Risk Factor

Medium

CVSS v3.0 Base Score

5.3 (CVSS:3.0/AV:N/AC:L/PR:N/UI:N/S:U/C:N/I:L/A:N)
CVSS v3.0 Temporal Score
4.6 (CVSS:3.0/E:U/RL:O/RC:C)
CVSS v2.0 Base Score
5.0 (CVSS2#AV:N/AC:L/Au:N/C:N/I:P/A:N)
CVSS v2.0 Temporal Score
3.7 (CVSS2#E:U/RL:OF/RC:C)

Git Repo Served by Web Server

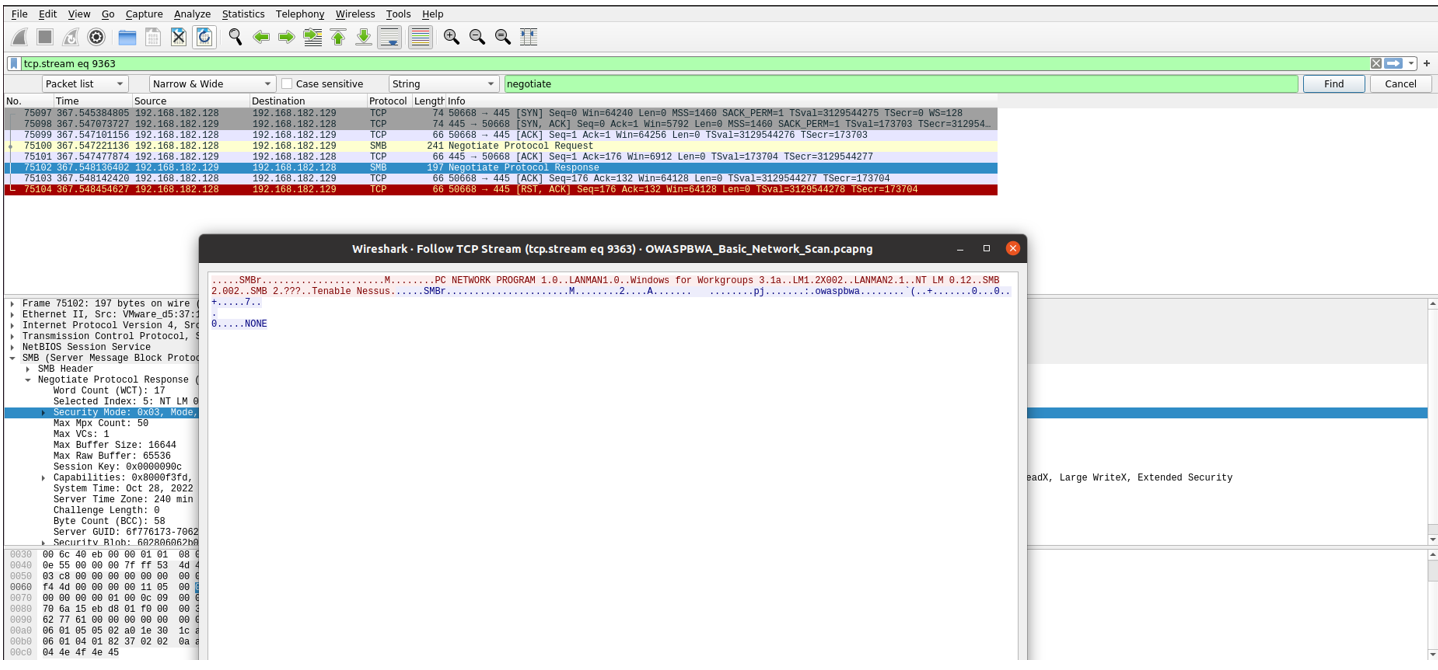

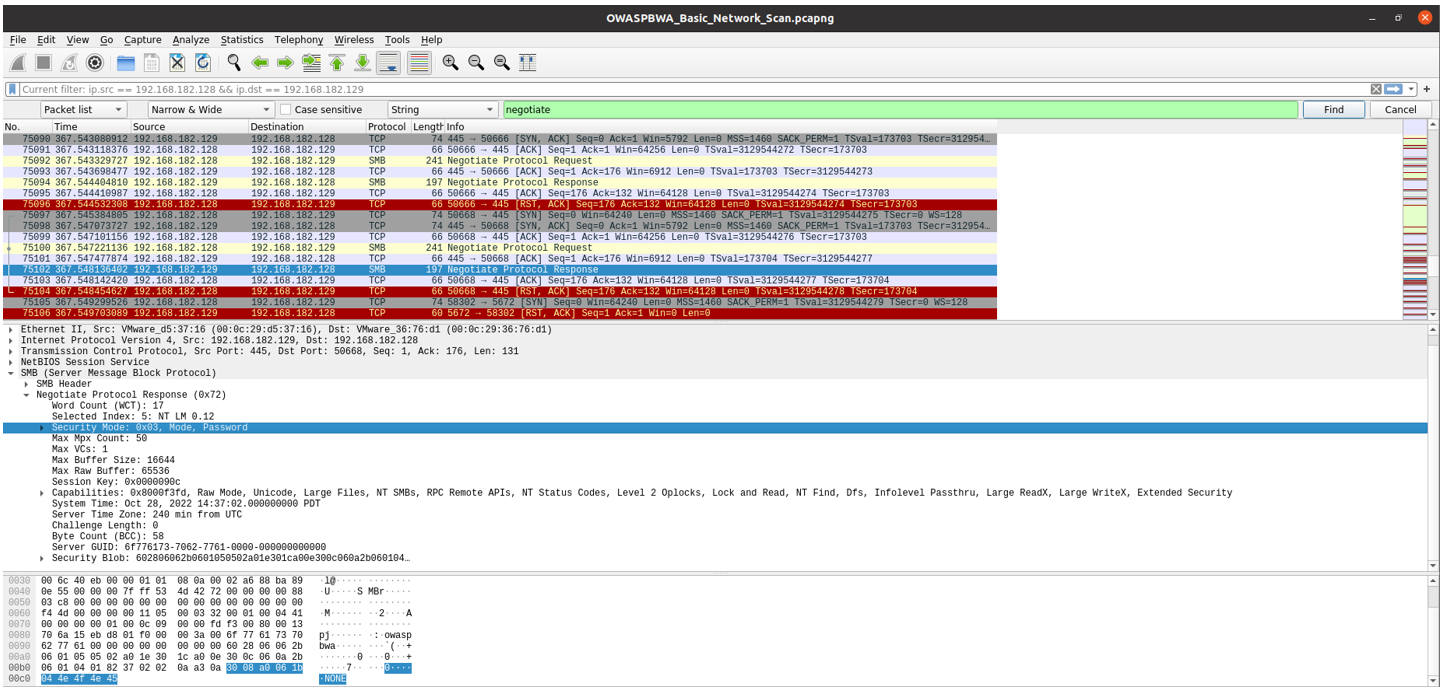

The Negotiate Response Packet shows that SMB Signing is not required.
Value of 3 represents SMB signing being disabled, 7 represents SMB signing enabled but not required, and 15 represents SMB signing enabled and required.
